| Gauge Parts and Services
In addition to my conversions and innovations I service accessory gauges such as Oil pressure, Temperature and Fuel.
I will also install overlay kits purchased from RCCI. I do not service speedometers or ammeters other than cleaning the mech and dial and painting the pointers.
|
|
|
Special announcement concerning clock servicing of Ford, Lincoln, Mercury OEM clock movements 1964-1973
Due to the increasing number of attempted self repairs, missing, rusted, corroded and broken parts, and generally worsening condition of clocks being sent in for repair and my diminishing supply of good, usable parts available I am suspending Clock Servicing.
I hope to have some clocks available for sale once I have some time to sort through my cores and see what I have that can be saved with the parts I have.
I will continue to convert clocks to modern movements.
|
|
|
Clock Conversion to quartz - Ford, Lincoln, Mercury BORG movements
Want the accuracy and reliability of a modern quartz clock? I can convert your clock so it runs like a new one.
BORG clocks have a 'B' stamped on the back of the case.
General Time movements are stamped 'GT' and I cannot convert them to quartz.
A converted clock will not have the distinct 'click' when winding and the second hand will sweep rather than step, but
otherwise looks and installs like the original.
Converting to quartz requires the core clock be complete and have a working set mechanism (used to set the time).
Purchase a new lens from me and I will install it free of charge.
Quartz conversions and parts have a lifetime warranty. Don't settle for less!
Available? Yes, BORG only. Estimated Turn-around is 21 business days between receipt of your clock and return shipping.
Click here for installation instructionsCA residents Prop 65 Warning
www.P65warnings.com |
|
|

|

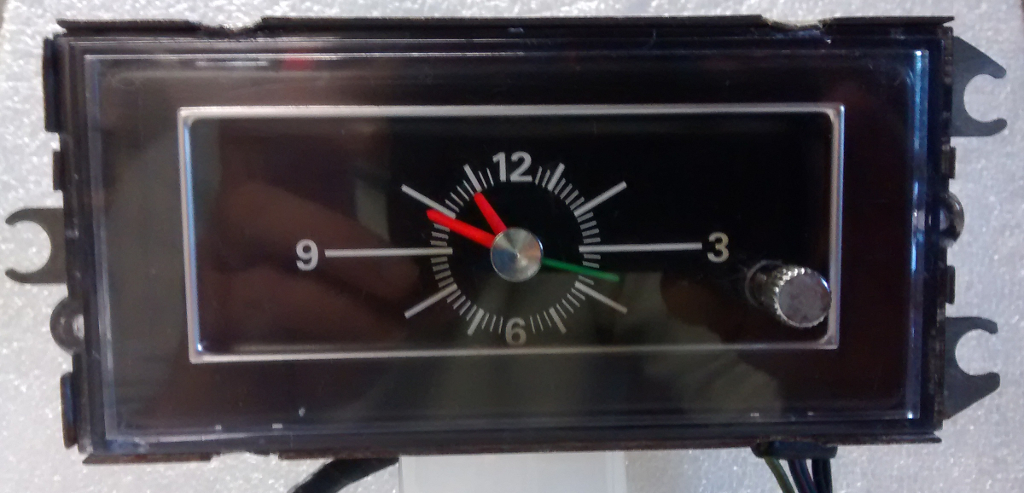

M7123DC Clock Conversion - Ford, Lincoln, Mercury General Time movements 1969-1973
Ford used Borg movements in most of their clocks, but some of their specialty clocks used a General Time movement. Most of these are found in the 69-73 Mustang rectangular console clocks and the 71-73 Mustang dashboard clocks. They also used them in the '71-73 Cougar console clocks.
The movement type is stamped into the back of the case: BORG are stamped with a 'B', General Time are stamped 'GT'.
The GT movement is a rather poor design, prone to coil failures and melt downs and parts are very hard to find. I no longer service or repair GT clock movements.
Since the GT clock is so different from the Borg clock the modern quartz conversions will not work without extensive rework to the mounting plate and set mechanism. If you want a GT clock converted to quartz you will have to send it to Instrument Services, Inc. (ISI) in Machesney Park, IL - the folks that make the Borg quartz conversion kits. Or....
I can convert your GT console clock to a digital/analog stepper clock. For years I have been trying to find a solution for the burned up GT clocks out there. I finally have a solution that works great, is affordable, bolt-in and looks (almost) stock.
A converted clock will not have the distinct 'click' when winding because it does not wind.
The hands move once every 30 seconds so there is no second hand, otherwise it looks and installs like the original.
The converted clock uses very little power (less than 0.02A*) and has no motor to run 24/7 like a quartz movement.
This conversion does not use the mechanical set mechanism so broken or missing set stems are not a problem.
Purchase a new lens from me and I will install it free of charge.
My clock conversions and parts have a lifetime warranty. Don't settle for less!
* The converted clock is using .02A @ 12 volts. Compare this to a fuel gauge that uses .07A @ 6 volts (.14A @ 12V).
Video: How to set the time
Available? Not Available.
|
M7123DC GT Clock Conversion 1969-1973 $125.00 |
Click here for installation instructionsCA residents Prop 65 Warning
www.P65warnings.com |
|
|
|
G2XCL Clock Lens
Replacement lens for 69-70 XR7 and Eliminator clock. Replace your cloudy, scratched lens with a brand new one precision molded and concaved to be an exact duplicate of the original.
The sides and edge are painted like the original and the new Elapsed Time pointer and knob are installed at the proper angle thanks to the molded (not drilled) center hole.
Available? In stock, requires clock conversion service above.
Click here for installation instructionsCA residents Prop 65 Warning
www.P65warnings.com |
|
|
|
M6970CL Clock Lens
Replacement lens for 69-70 Mach 1 Rally clock. Replace your cloudy, scratched lens with a brand new one precision molded to be an exact duplicate of the original.
The new Elapsed Time pointer and knob are installed at the proper angle thanks to the molded (not drilled) center hole.
Available? In stock, requires clock conversion service above.
Click here for installation instructionsCA residents Prop 65 Warning
www.P65warnings.com |
|
|
|
|
Trip Odometer renewal
Trip odometers are a cool option, but the artwork did not hold up. Are your trip odometer numbers sun faded, dried out or missing? I can reface your faded trip odeometer numerals.
No need to disassemble your speedometer - send the entire unit and I will even paint the pointer if you ask.
Available? I need your core. Estimated return ship date: Wednesday, September 1st
Click here for installation instructionsCA residents Prop 65 Warning
www.P65warnings.com |
|
|
|
Gauge calibration and pointer renewal
Gauge calibration and pointer renewal of Temperature, Amps, Oil pressure or Fuel gauges.
RCCI warranty does not cover the gauges you supply to be renewed or calibrated.
Pointers are repainted to original color.
Pointer renewal consists of painting the pointer, not repairing or replacing damaged or missing pointers.
If your gauge has a damaged or missing pointer, please contact me before ordering. I may be able to replace it for an additional charge.
AMP gauges are renewed and tested but NOT calibrated.
In Stock? I need your core. Estimated return ship date: Wednesday, September 1st
| 1 Gauge $15.00
|
2 Gauges $24.00
|
3 Gauges $33.00
|
4+ Gauges $10.00 each.
|
|
|
|
|
G1XR - 67/68 XR7 Gauge Renewal
Gauge Renewal of 67/68 XR7 Temp, Oil, Fuel & Amps includes one G1XO overlay kit, installation of G1XO overlays,
pointer renewal and caibration of Fuel, Oil and Temperature gauges.
All RCCI products used to renew your OEM gauges come with a lifetime repair or replace warranty.
This warranty does not cover the gauges you supply to be renewed or calibrated.
Pointers are repainted to original color. Orange pointers simulate aging unless you request a 'red' pointer that looks like the pointer did when new.
Pointer renewal consists of painting the pointer, not repairing or replacing damaged or missing pointers.
If your gauge has a damaged or missing pointer, please contact me before ordering. I may be able to replace it for an additional charge.
AMP gauges are renewed and tested but NOT calibrated.
Available? I need your core. Estimated return ship date: Wednesday, September 1st
G1XR
Gauge Renewal
67/68 XR7$65.00
|
